Hook Based Trainer Architecture

The HookBasedTrainer is the heart of RoboOrchardLab, orchestrating the training and evaluation processes through a structured and extensible pipeline. This pipeline is characterized by nested execution loops and numerous hook channels, allowing for precise customization at various stages.

Visualizing the Execution Flow

To effectively leverage the hook system, it’s crucial to understand the pipeline’s execution flow. The following diagrams illustrate this structure, starting with a high-level view of the nested loops and then detailing the operations within a single micro-batch.

1. Nested Execution Loops

The core pipeline operates as a series of clearly defined, nested loops, each associated with specific hook channels:

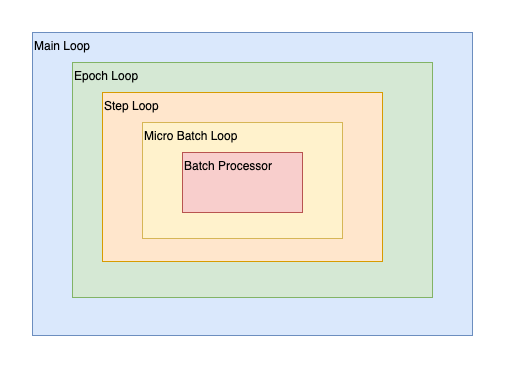

High-level view of the nested execution loops: Main Loop, Epoch Loop, Step Loop, and Micro Batch Loop with the Batch Processor at its core.

• Main Loop (on_loop_* hooks): This is the outermost context, encompassing the entire run (e.g., a full training session or an evaluation pass). on_loop_begin is for global setup, and on_loop_end is for final cleanup and reporting.

• Epoch Loop (on_epoch_* hooks): Iterates over the specified number of epochs. on_epoch_begin allows for epoch-specific initializations (e.g., resetting metrics), while on_epoch_end is typically used for validation, learning rate adjustments, and epoch-level checkpointing/logging.

• Step Loop (on_step_* hooks): Represents one optimizer step. If gradient accumulation is used, this loop will encompass the processing of multiple micro-batches before model weights are updated. on_step_begin precedes micro-batch processing for the current optimizer step, and on_step_end follows the (potential) optimizer update.

• Micro Batch Loop (on_batch_* hooks): This is the innermost data processing loop, handling one micro-batch at a time as provided by the DataLoader. The Batch Processor component executes its core logic within this loop.

2. Detailed Micro Batch Processing and Hook Activation

The diagram below details the operations and hook activations within a single iteration of the “Micro Batch Loop,” as orchestrated by the Batch Processor:

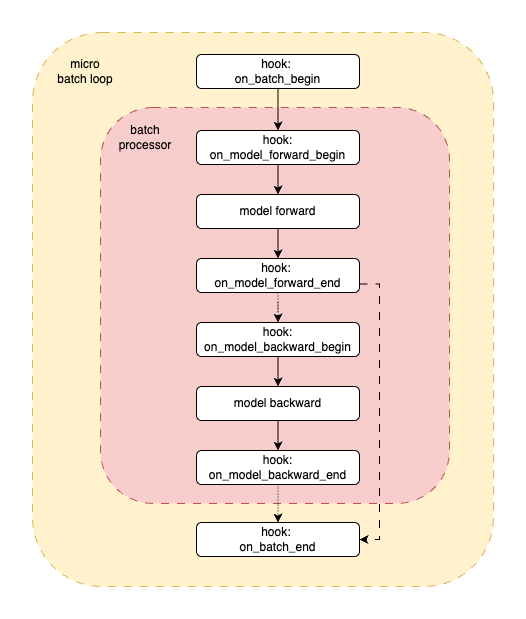

Detailed flow for processing a single micro-batch, highlighting model execution stages and their corresponding hook points.

This detailed flow for a micro-batch proceeds as follows:

• hook: on_batch_begin: Triggered before any processing of the current micro-batch.

• hook: on_model_forward_begin: Called immediately before the model’s forward pass.

• model forward: The Batch Processor executes the model’s forward pass using the current micro-batch, typically computing outputs and loss.

• hook: on_model_forward_end: Called immediately after the forward pass. Model outputs and loss are usually available in PipelineHookArgs at this point, making it suitable for metric updates.

• (Conditional Backward Pass - see “Training and Evaluation Modes” below)

• hook: on_model_backward_begin: Called just before initiating the backward pass (gradient computation).

• model backward: The Batch Processor executes the backward pass (e.g., accelerator.backward(loss)).

• hook: on_model_backward_end: Called immediately after the backward pass. Gradients are now available.

• hook: on_batch_end: Triggered after all operations for the current micro-batch (including forward and potential backward passes) are complete.

Core Operations

The Batch Processor is responsible for the model forward and model backward stages. The HookBasedTrainer, in conjunction with Hugging Face ``Accelerator``, manages higher-level operations such as:

• Moving data and models to the correct device.

• Wrapping the model, optimizer, and dataloader for distributed training.

• Handling gradient accumulation (the step loop iterates over micro-batches, and Accelerator determines when to sync gradients and step the optimizer).

• Performing optimizer.step() and optimizer.zero_grad(), typically aligned with the on_step_end hook context.

• Calling lr_scheduler.step(), often within on_step_end or on_epoch_end depending on the scheduler type.

Role of PipelineHookArgs

At every hook trigger point (i.e., within the on_enter and on_exit methods of a HookContext registered to a channel), an instance of PipelineHookArgs is passed. This object provides rich contextual information about the current state of the pipeline, including epoch/step IDs, the current micro-batch data, model outputs, computed loss, and references to the accelerator, optimizer, etc. This allows hooks to make informed decisions and perform relevant actions.

Training and Evaluation Modes

The pipeline structure illustrated is versatile:

• Training Mode: The model backward operation and its associated hooks (on_model_backward_begin, on_model_backward_end) are executed. The BatchProcessor is typically configured with need_backward=True.

• Evaluation Mode: The model backward operation and its hooks are skipped. This is achieved by configuring the BatchProcessor appropriately (e.g., need_backward=False) or by the trainer using a different execution path for evaluation steps. The on_batch_end hook remains crucial for calculating evaluation metrics. An evaluation phase is often triggered via the on_epoch_end hook.

Extensibility through Hooks

This detailed, hook-rich pipeline architecture provides numerous well-defined points for injecting custom logic. Users can develop and register hooks to implement a wide array of functionalities—such as custom metric logging, advanced checkpointing strategies, dynamic parameter adjustments, early stopping, and interaction with external systems—without needing to modify the core HookBasedTrainer or BatchProcessor code. This makes RoboOrchardLab highly adaptable and powerful for diverse research and development needs in embodied AI.
