Handeye Calibration¶

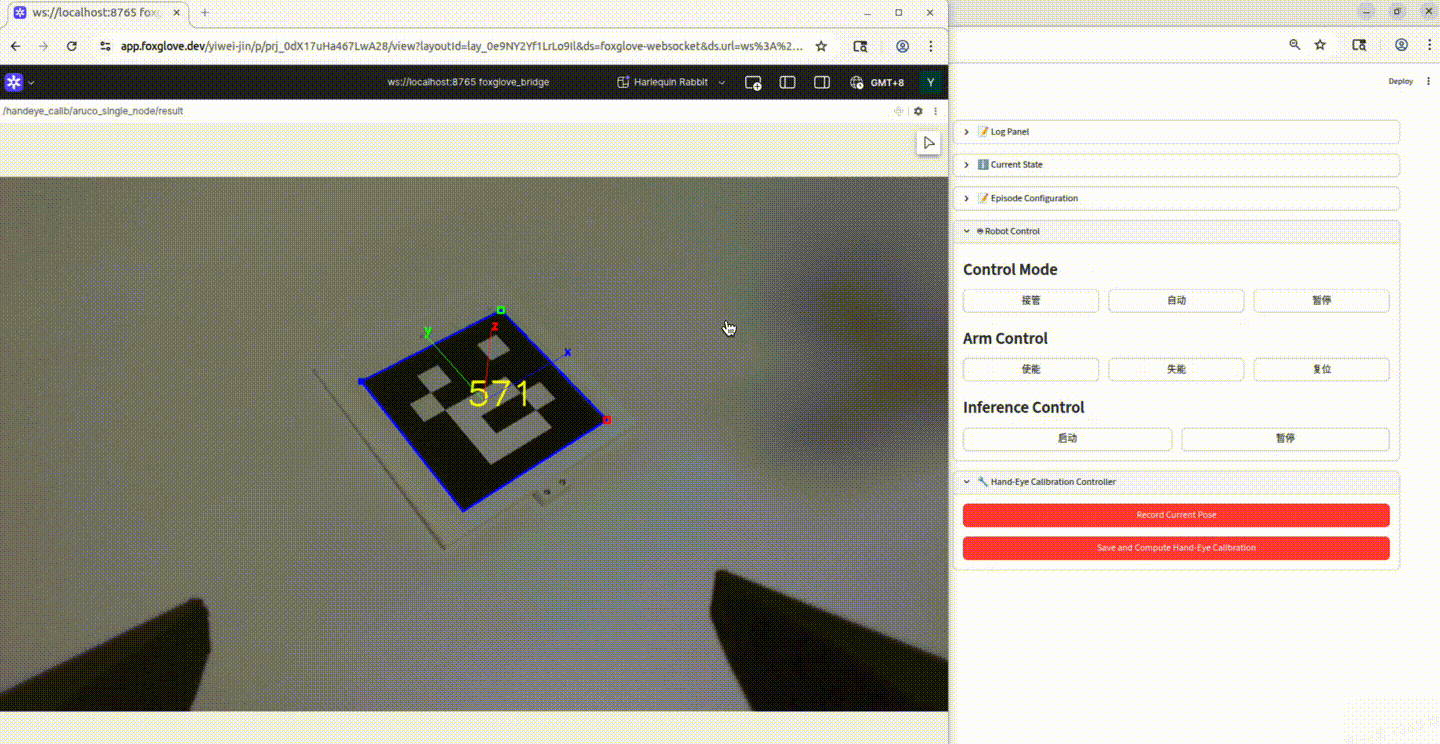

We provide a hand-eye calibration toolkit designed to determine the spatial transformation between the robot arm and the camera(i.e., camera extrinsics). The tool supports both eye-in-hand and eye-to-hand configurations. By utilizing teleoperation (e.g., ALOHA) or a predefined set of waypoints, the system captures the ArUco marker pose at various poses within the camera’s field of view and the robot arm end-effector pose at the same time. This process yields a series of pose pairs, from which the final calibration matrix is computed.

Get aruco_ros package and build it

cd ros2_package
git clone https://github.com/pal-robotics/aruco_ros -b humble-devel thirdparty
cd thirdparty
colcon build
source install/setup.bash

Configure the parameters in launch_handeye_calib.sh in the handeye_calib directory to your actual usage:

Handeye Calibration Parameters Configuration¶
Arguments	Explain
MODE	‘eye_in_hand’ or ‘eye_to_hand’
ARUCO_MARKER_SIZE	size of aruco marker you used
ARUCO_MARKER_ID	ID of aruco marker you used
CAMERA_FRAME_NAME	frame name of the camera to be calibrated, which must match the actual frame name published by your camera driver
ARUCO_MARKER_FRAME_NAME	The frame name to be assigned to the ArUco marker. You can typically keep the default ‘marker_frame’
CAMERA_INFO_TOPIC	The ROS2 topic name of your camera info
CAMERA_RAW_TOPIC	The ROS 2 topic name for your camera info/raw image
END_EFFECTOR_FRAME_NAME	frame name of your EEF, which can typically be found in your URDF file
BASE_FRAME_NAME	The base frame name of your robot arm (e.g., `base_link`), which can typically be found in your URDF file
END_EFFECTOR_POSE_TOPIC	The ROS 2 topic name where the end-effector (EEF) pose is published
RESULT_FILE	path to save calibration result json file

The final output is a json file in the ros tf format, which specifies the parent and child frames, and represents the result with quaternion. You could see a sample output of eye-in-hand calibration result in the following:

Note

Frame is defined in ROS standard
Quaternion is scalar-last, i.e., position: [x, y, z], orientation: [qx, qy, qz, qw]

{
    "parent_frame": "left_end_effector",
    "child_frame": "left_wrist_camera",
    "result": {
        "position": [
           -0.07111201370909159,
           0.005933229997508317,
           0.026299147506149152
        ],
        "orientation": [
           0.12614812772318,
           -0.15849564864236187,
           0.704431212421235,
           -0.6802517520742759
        ]
    }
}

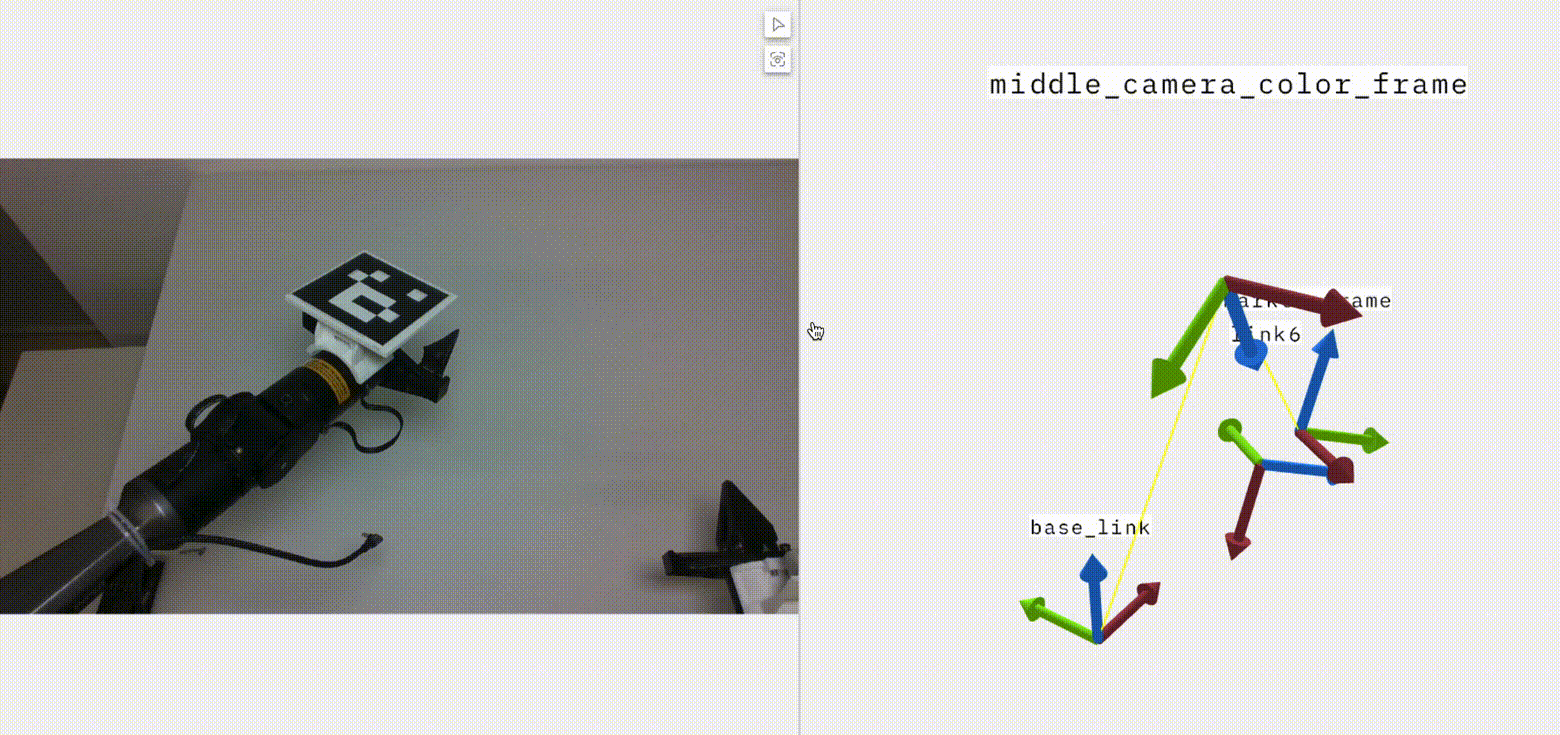

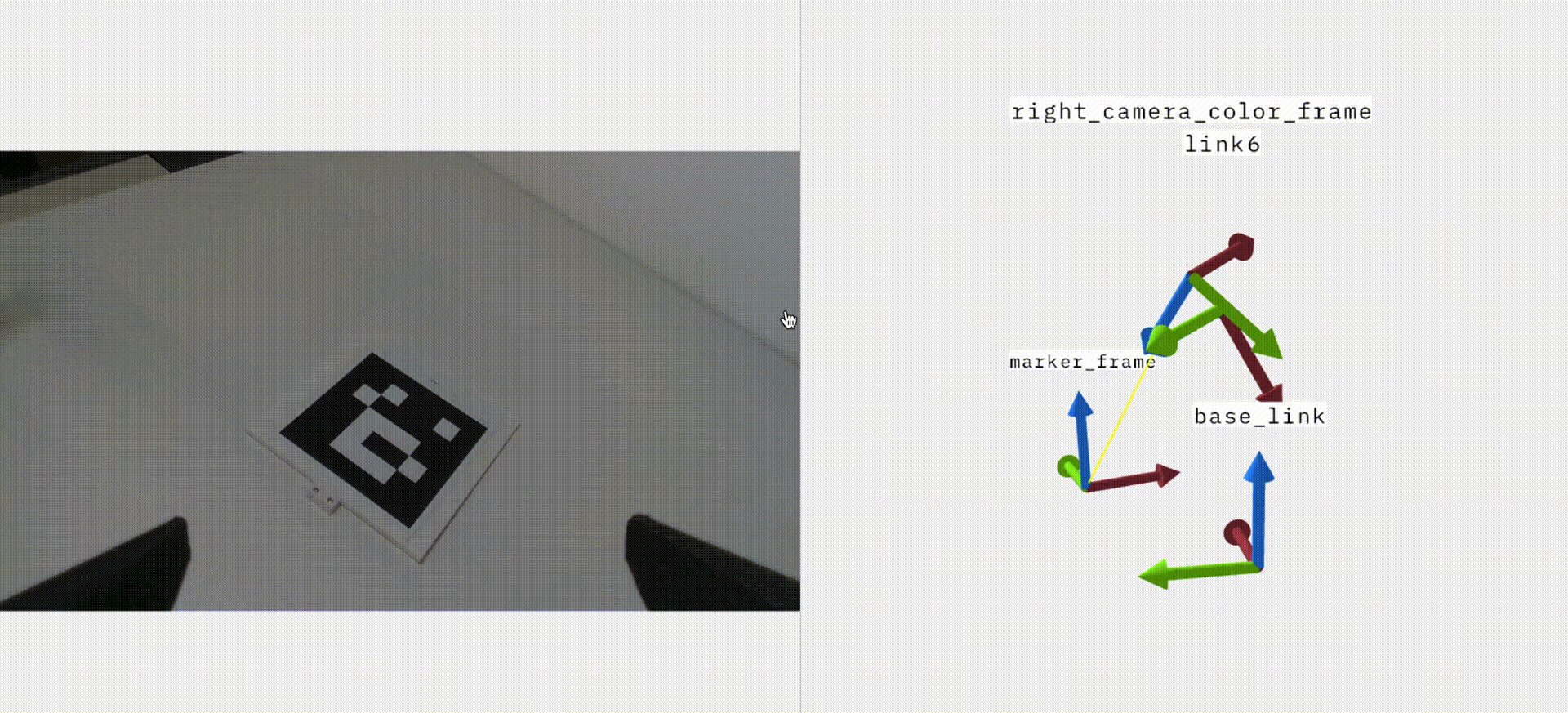

If your configed the launch_handeye_calib.sh correctly, you will see the following visualization in foxglove studio, if the result is good, the marker_frame will not change much.
