Visual-Language Navigation (VLN) is a fundamental challenge in robotic systems, with broad applications for the deployment of embodied agents in real-world environments. Despite recent advances, existing approaches are limited in long-range spatial reasoning, often exhibiting low success rates and high inference latency, particularly in long-range navigation tasks. To address these limitations, we propose FSR-VLN, a vision-language navigation system that combines a Hierarchical Multi-modal Scene Graph (HMSG) with Fast-to-Slow Navigation Reasoning (FSR). The HMSG provides a multi-modal map representation supporting progressive retrieval, from coarse room-level localization to fine-grained goal view and object identification. Building on HMSG, FSR first performs fast matching to efficiently select candidate rooms, views, and objects, then applies VLM-driven refinement for final goal selection. We evaluated FSR-VLN across four comprehensive indoor datasets collected by humanoid robots, utilizing 87 instructions that encompass a diverse range of object categories. FSR-VLN achieves state-of-the-art (SOTA) performance in all datasets, measured by the retrieval success rate (RSR), while reducing the response time by 82% compared to VLM-based methods on tour videos by activating slow reasoning only when fast intuition fails. Furthermore, we integrate FSR-VLN with speech interaction, planning, and control modules on a Unitree-G1 humanoid robot, enabling natural language interaction and real-time navigation.
FSR-VLN system integrates HMSG with FSR to achieve view/object-level real-world long-range navigation. Specifically, RGBD and pose data are first utilized to construct HMSG, which provides a hierarchical and multimodal feature-based representation of the environment. During online interaction, the user’s text or voice input is converted into instructions via voice activity detection and speech recognition, and the LLM infers the target object. Based on the HMSG, fast-matching and slow VLM reasoning jointly identify the optimal goal view/object. The identified goals are subsequently used by the global path planning.
The goal view and object retrieval results of FSR-VLN for different instructions in Room4. FSR-VLN successfully retrieves the goal view and object across four instruction types in long-range indoor environments

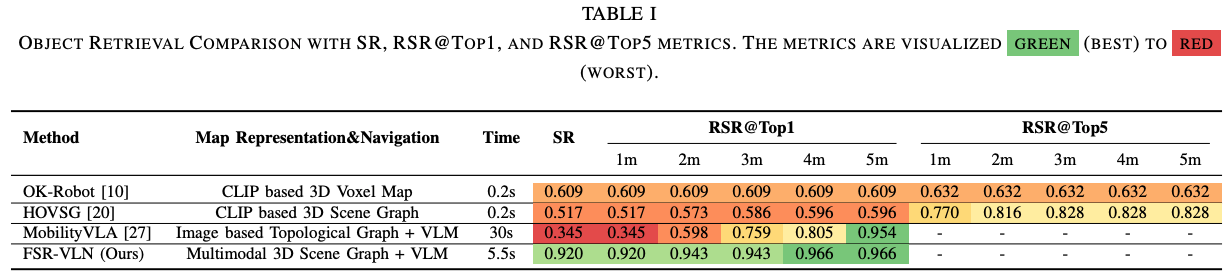

FSR-VLN achieves the highest SR of 92% (80/87), substantially outperforming baselines: Mobili- tyVLA: 34.5% (30/87), OK-Robot: 60.9% (53/87), HOVSG: 51.7% (45/87). This corresponds to relative improvements of 167%, 51%, and 77%, respectively, demonstrating the effectiveness of our approach

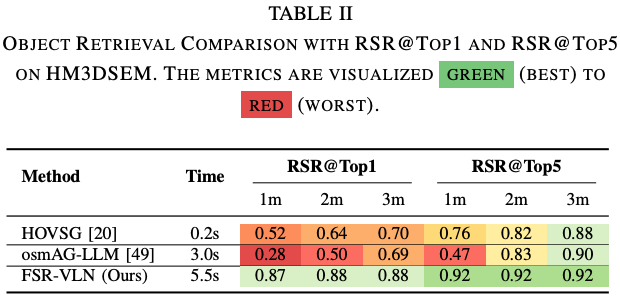

In the HM3D-SEM dataset, as osmAG-LLM, we select HOV-SG and osmAG-LLM as our baseline because they share fundamental design principles with our approach. The Top-1 retrieval success rate of osmAG-LLM is significantly lower than that of HOVSG. The main reason is that osmAG-LLM loses the hierarchically rich visual open-vocabulary feature representation present in HOVSG and instead relies solely on textual recognition results. Although the osmAG-LLM semantic map is also hierarchical, it only preserves XML-level textual information without retaining visual CLIP features. In contrast, our method not only preserves CLIP-based visual embeddings but also further interacts with the original image information through VLM, leading to a notable improvement in retrieval success.

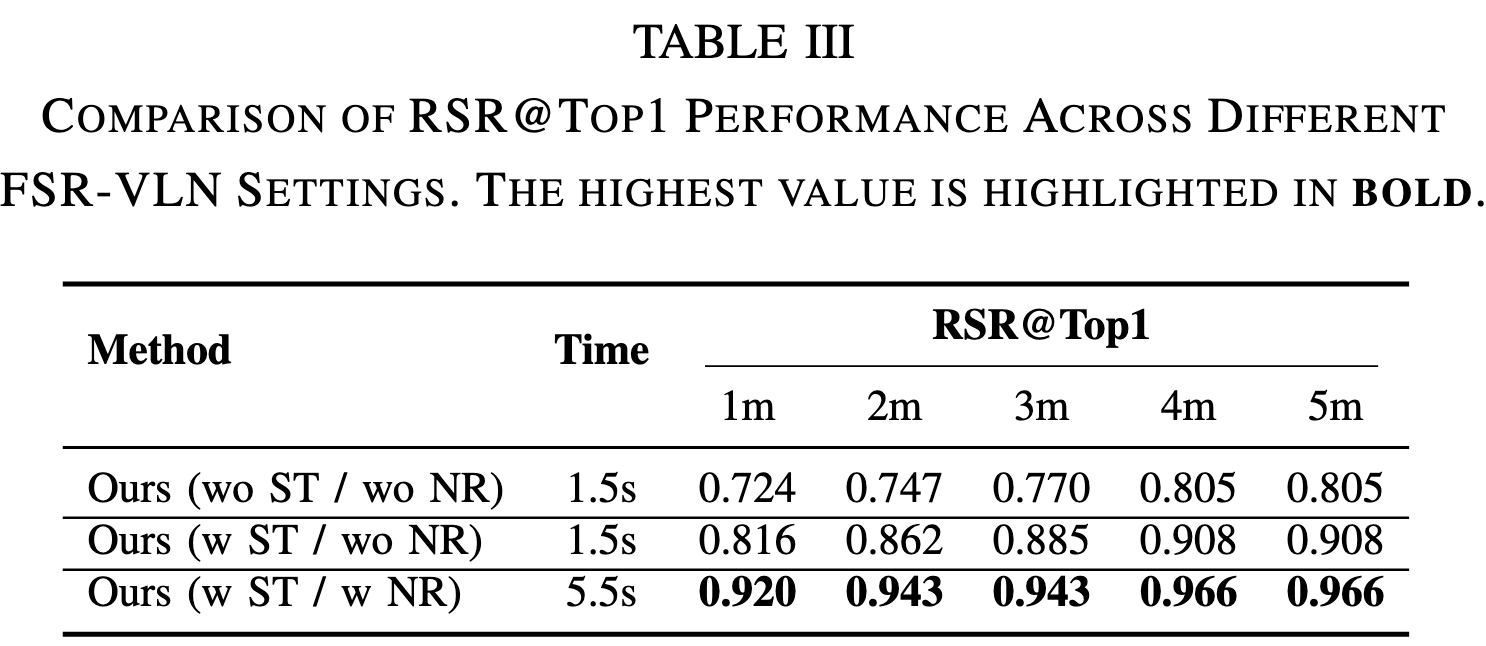

Without Navigation Reasoning (NR) and Spatial Target (ST) instructions guide long- range navigation is guided by restricting object search to the target room, reducing global matching errors, and improving RSR. In long-range environments, this room-level guidance is particularly critical; when combined with the hierarchical scene graph, the search is further confined to the designated room, enhancing navigation success. With NR, extended VLM reasoning allows FSR to verify the correctness of fast matching, and VLM-based selection refinement further increases RSR, demonstrating the effectiveness of the ap- proach.
@misc{zhou2025fsrvlnfastslowreasoning,
title={FSR-VLN: Fast and Slow Reasoning for Vision-Language Navigation with Hierarchical Multi-modal Scene Graph},
author={Xiaolin Zhou and Tingyang Xiao and Liu Liu and Yucheng Wang and Maiyue Chen and Xinrui Meng and Xinjie Wang and Wei Feng and Wei Sui and Zhizhong Su},
year={2025},
eprint={2509.13733},
archivePrefix={arXiv},
primaryClass={cs.RO},
url={https://arxiv.org/abs/2509.13733},
}
